Polyimide/Kapton 260°C high-temperature-resistant tape
Polyimide/Kapton 260°C high-temperature-resistant tape
Request a Sample
Couldn't load pickup availability

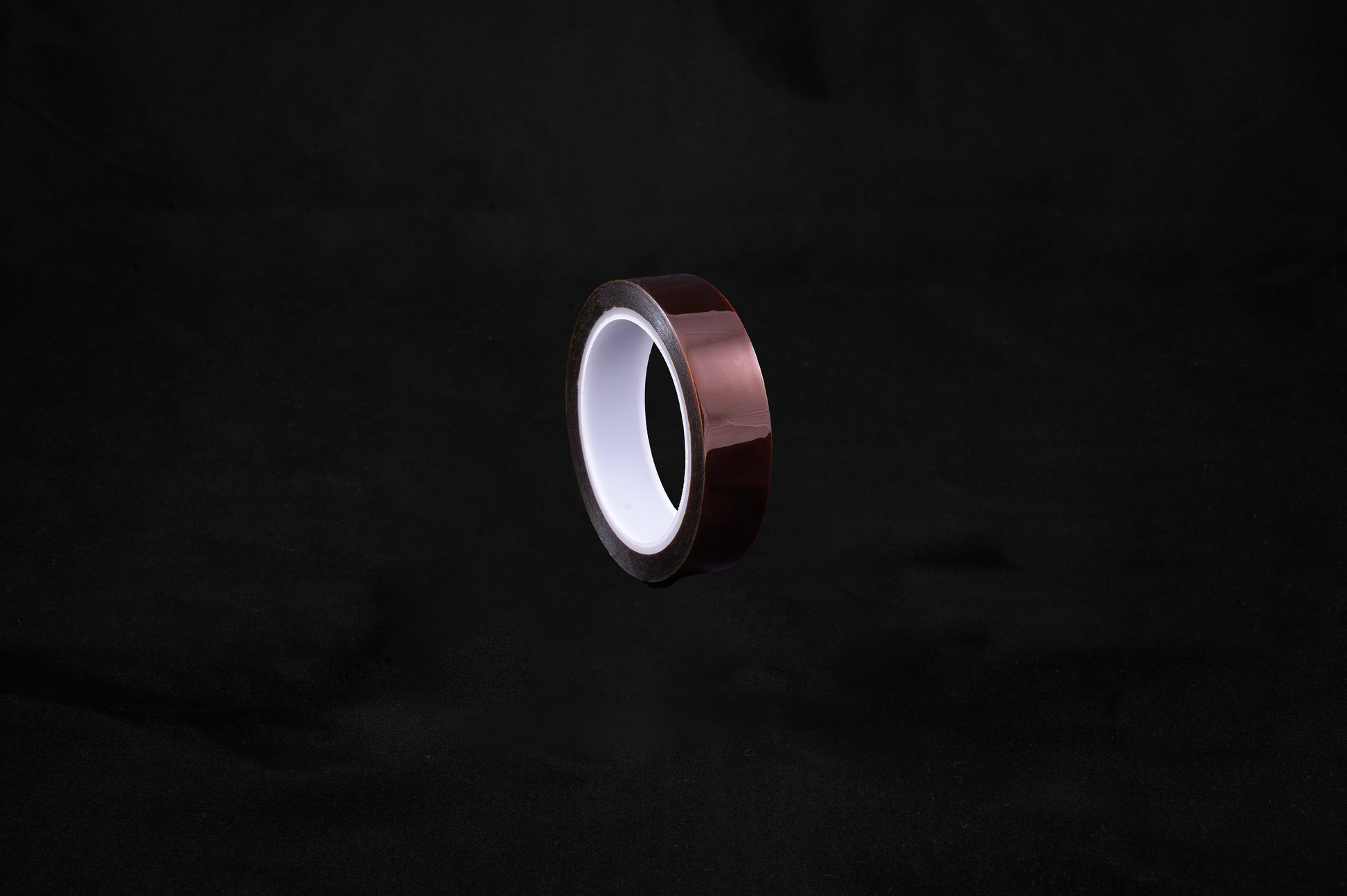

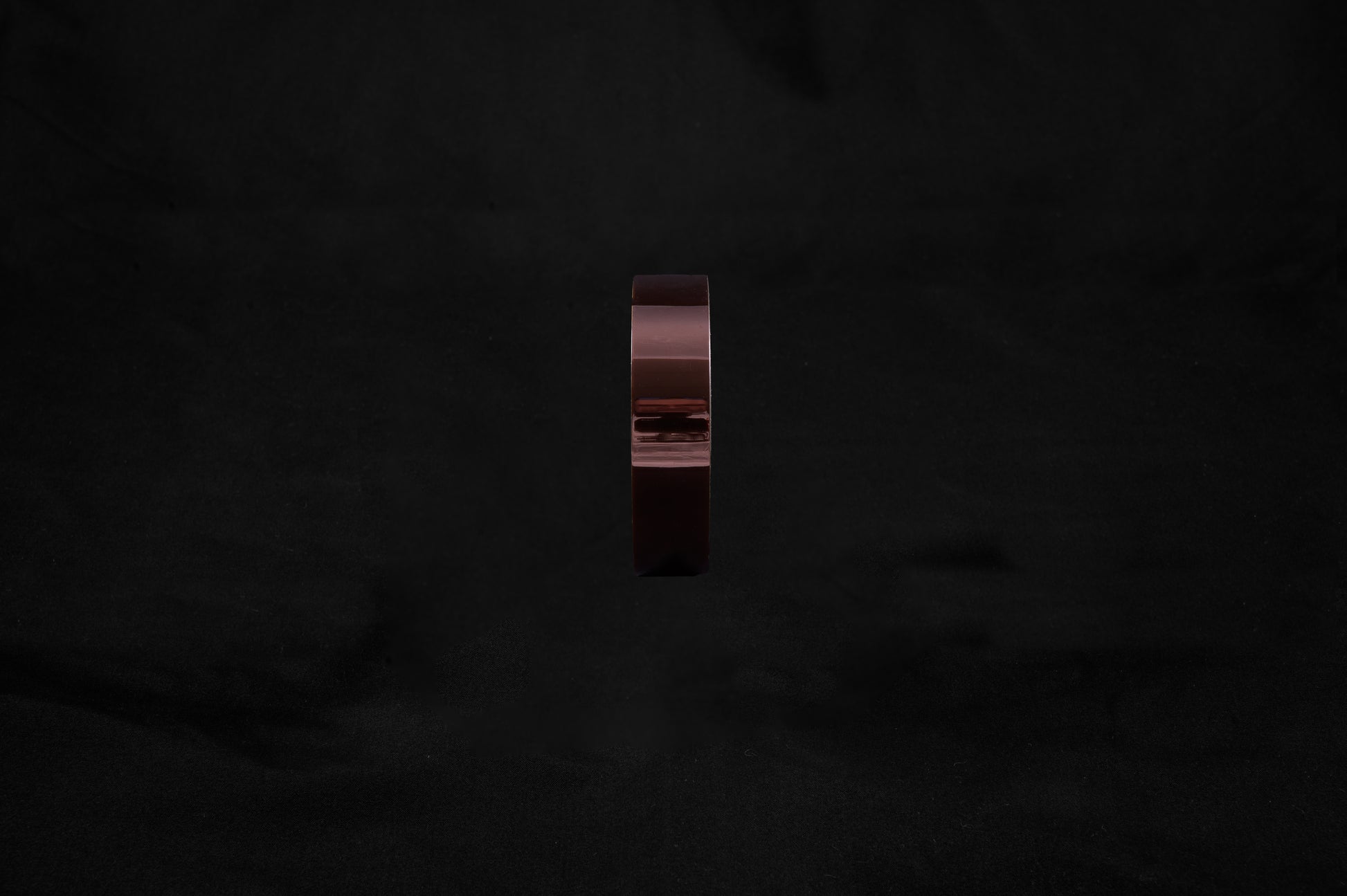

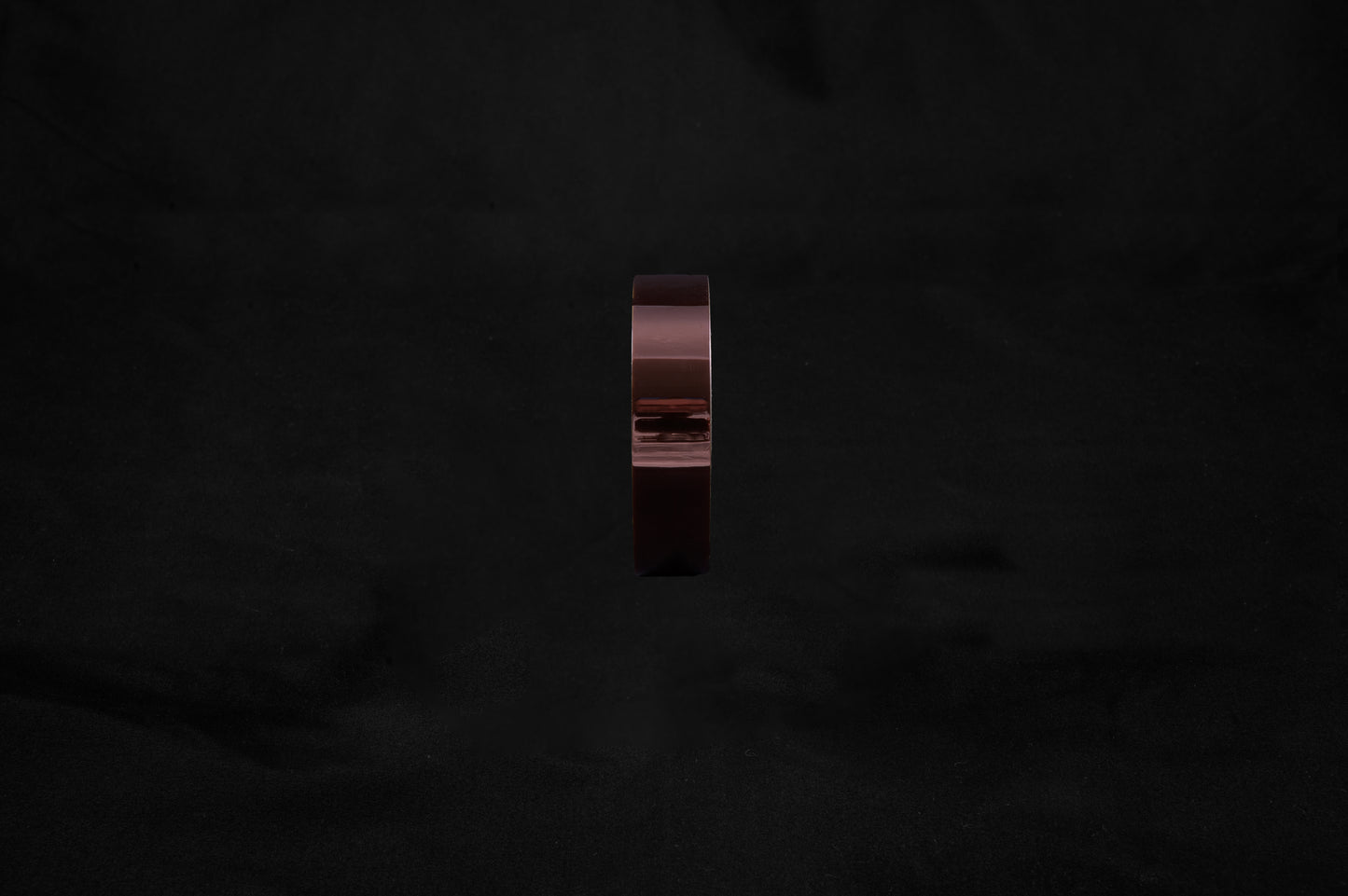

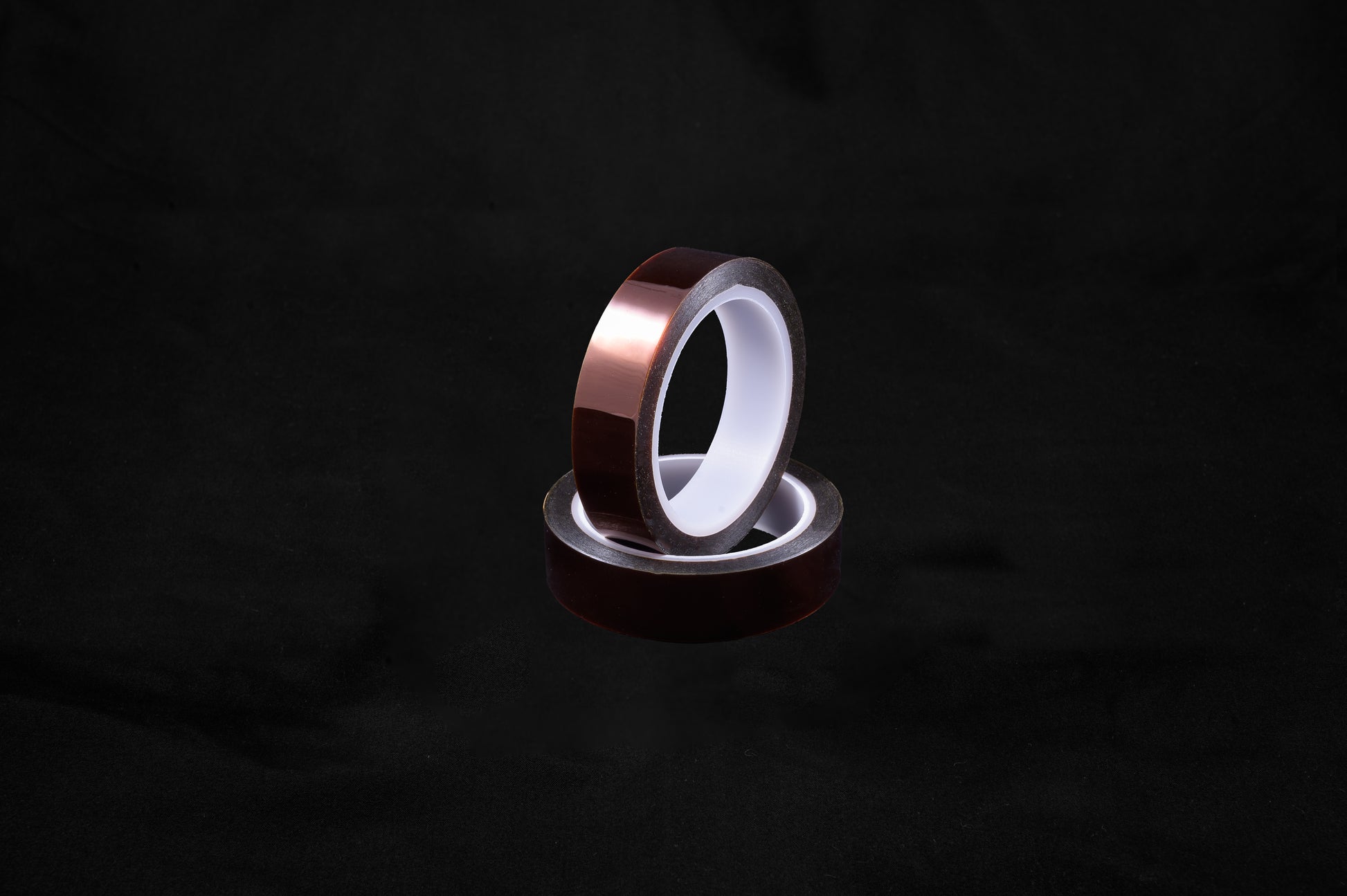

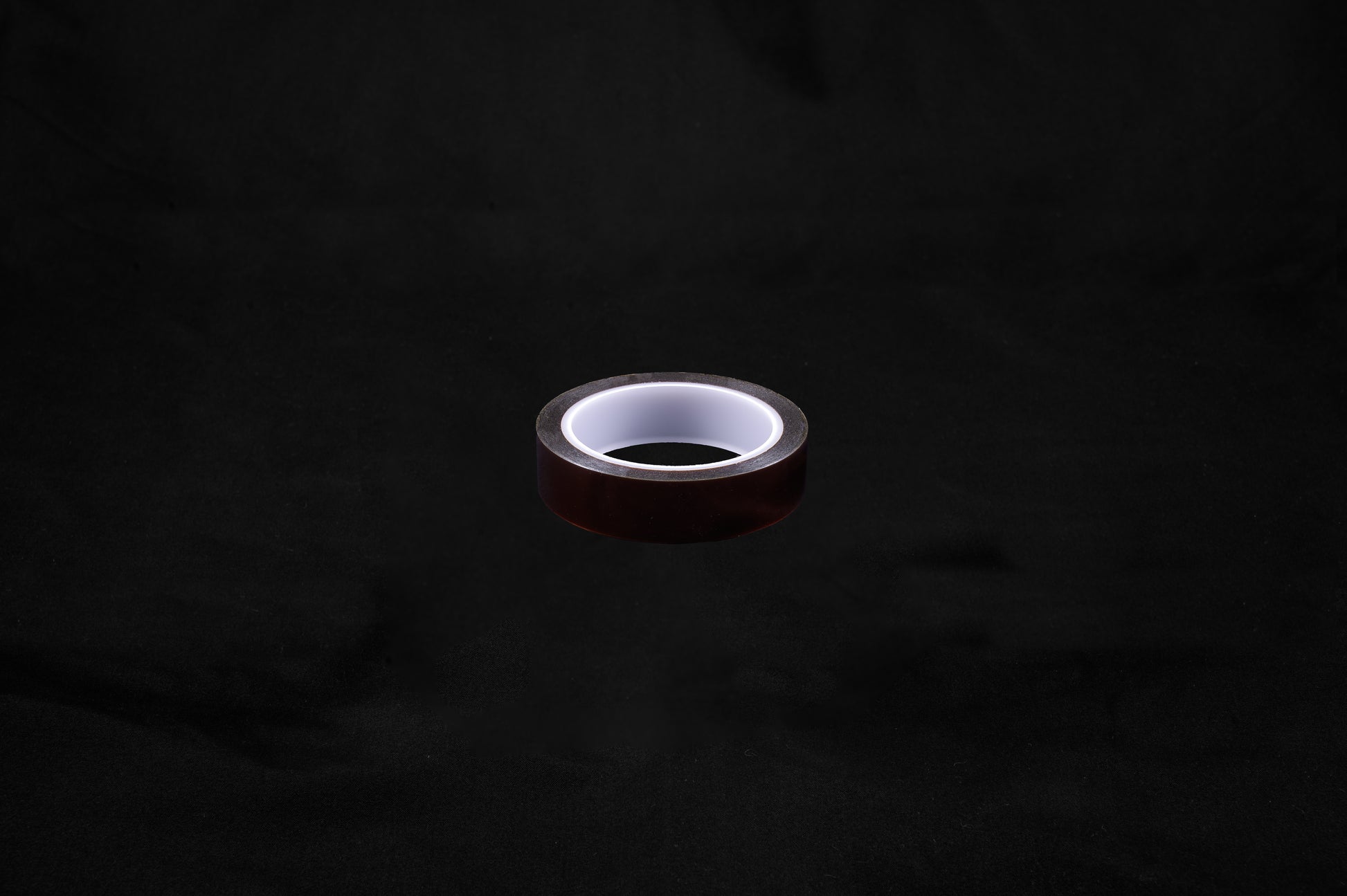

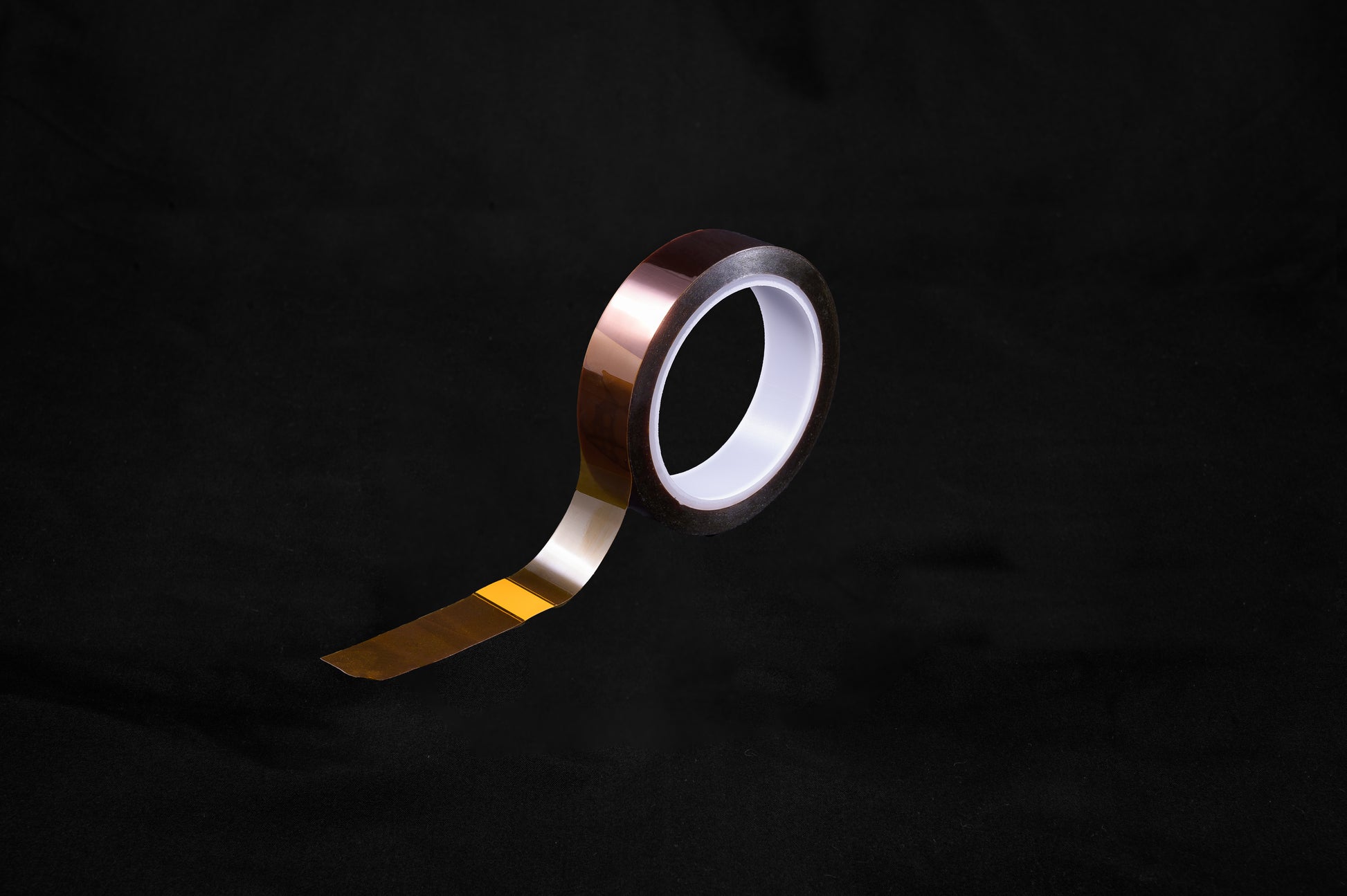

Our polyimide tape, commonly referred to as Kapton® tape, is crafted from commercial-grade polyimide film and coated with a durable silicone adhesive. It offers exceptional heat resistance, capable of withstanding temperatures up to 260°C for extended periods.
We offer a wide range of tape widths, from 3mm to 500mm, and also provide bespoke die-cutting services using all standard materials. Whether you need squares, donuts, rectangles, ovals, triangles, or more intricate, custom shapes, we can create tape die-cuts to meet your exact specifications.
This tape is the industry standard for Powder Coating, E-Coating, Anodizing, Plating, Soldering, Circuit Board Insulation, and Hot Air Levelling.
Additional sizes available upon request. Please contact us for more details and tailored pricing.
It is also available with different film thickness.
| Material | Polyimide |
|---|---|
| Colour | Yellow-Brown |
| Adhesive | Silicone |
| Film Thickness | 0,025 mm |
| Adhesive Thickness | 0,040 mm |
| Total Thickness | 0,065 mm |
| Temperature resistance | Up to 260 °C |
| Chemical resistance | Good |
| Available formats | Rolls in standard and custom sizes |
| Custom die cut | Squares, dots, washers etc. |
| Electrical dielectric strength | 4000 V |
| Length of roll | 66m |
Share
Disclaimer Please note that all values presented are approximate and intended solely as a guide. We do not guarantee their accuracy and cannot accept responsibility for any discrepancies. It is your responsibility to assess the suitability of our products for your specific application.The values provided are based on standard testing methods and represent average results. They should not be used for precise specification purposes. Although our recommendations are based on reliable tests, we encourage you to conduct your own assessments to ensure the products meet your needs. We disclaim any responsibility or liability for any direct or consequential loss or damage resulting from the use of our recommendations or products.
